Jet Filter Models & Accessories

QUALITY

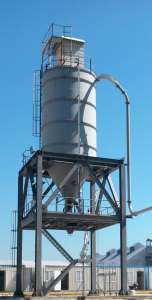

Silo Top Filters

Pneumatic conveying systems and bulk solid tanker trucks utilize pressurized air to transfer bulk solids to silos. This air carries powdered materials to the silo and during discharge through the silo vent outlet, this air also carries dust particles to outside. Silo top jet filters installed on bulk material silos prevent these kind of dust emissions and provide healthier environment. Additionally, these filter systems also keep valuable raw material dust inside the silo.

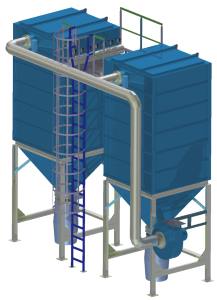

Dust Collection System

Industrial plants use central dust collectors to collect dust from different points in the production line. Baghouse filters, de-dusting systems are used in these plants to collect the dust to single point.

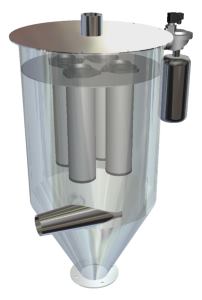

Filter Receiver

Filter receivers are used to separate pneumatic conveying air and conveyed bulk material at the end of conveying line. Upper section of filter receiver unit is similar to jet filters. This jet filter can be made of bag filter elements or cartridge type filter elements. Lower section of filter receiver unit is the same as cyclone receiver. This design combines the advantages of cyclones and jet filters in single body.

System Filters

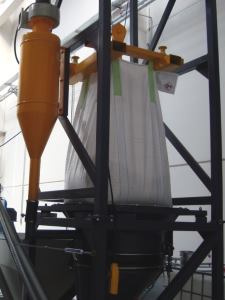

System filters are custom designed jet filters built for individual bulk solids handling applications like big bag discharge systems, bag dump stations, bulk tanker truck loading bellows, compressor inlet filters etc.

Jet Filter Configurations

Jet filter accessories and configurations vary, depending on wide range of application possibilities, dust properties and environmental conditions.

Jet filter bodies are made of stainless steel, filter bags are FDA approved, overall design is made for contamination free in food applications.
In explosive atmospheres and explosive dust handling, jet filter components are ex-proof and have Atex certification. Filter bags are antistatic.
For high temperature materials such as fly ash, filter body and filter bags are made of heat resistant materials.
For bulk solids which have high moisture content and sticky, inner side of filter body is made of polished material. Filter bags are coated with special coating.

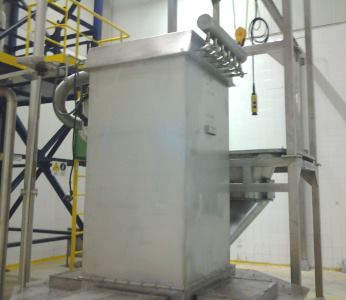

Jet filter with fan for food application

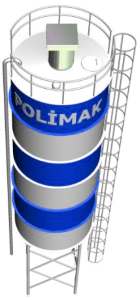

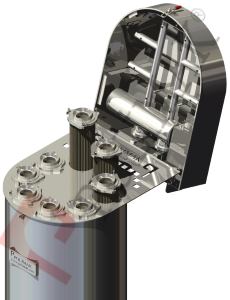

Silo Top Filter

Silo top jet filters are used to vent pneumatically filled silos, tanks and containers keeping the dust inside of the silo (or container, tank etc.) and letting the pneumatic air to leave it.

Applications of Silo Top Vent Filters

Silo top filters are installed on bulk material storage silos. Blowers and compressors supply required air for pneumatic conveying systems. This air is used to convey bulk solids to silos, tanks and containers. Jet filters are used to filter and discharge this conveying air while keeping the raw material inside the silo.

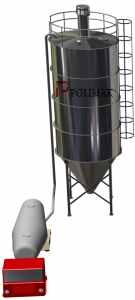

Bulk Tanker Truck Discharge
Pneumatic Conveying Systems
Silo Filling
Industrial Plants
Concrete Batching Plants

Silo vent filters keep dust content of bulk solids such as cement, fly ash, calcium carbonate, food and plastics in the silo. And keep the environment clean.

Jet Pulse Filter Operating Principle

While filling of silos with bulk materials in powder form, air with dust content is transferred to the filter unit by air pressure. Filter cartridges or filter bags hold the dust particles and lets the conveying air pass through them. The reverse air jet pulse system is used to blast pressurized air to the filters in the reverse direction to clean the filters periodically. The dust is dropped back to the silo and clean air is discharged. Reverse air pulse jet system is composed of pulse jet diaphragm valves, pressurized air tank, injection nozzles and electrical controller.

Features of Silo Jet Filters

Cylindrical shape.
Connection flange for connecting to silo top.
Maintenance free reverse air jet pulse system
Weather proof and lockable top cover
Microprocessor control unit
High efficiency cartridge type filter elements
Low dust emission
Simple access to filters
Cartridge filters can easily be changed from the top cover
Inspection flange for inspecting the filters and inside of silo
Ready to install design
Filtering area ranging from 0.5m² to 100m²
Wam filters

Jet Filter Accessories

Spare filter cartridges
Lower connection flange and adapters
Silo pressure safety valve

Jet Filter Applications

Cement silo
Gypsum silo
Calcium carbonate silo
PVC silo
Wheat silo
Dust collection systems
Dust storage silo
Bulk material loading and filling systems
Dosing, batching and weighing systems
Loading and discharging hoppers

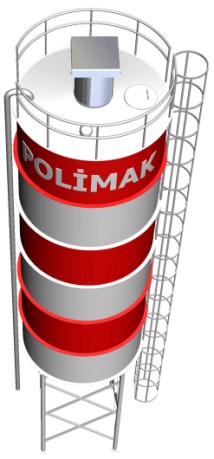

Cement Silo Filter

Main function of silo filters is to prevent any harmful dust emission to the environment. Concrete batching plants and cement factories utilize cement silos and they should prevent any cement dust spreading around production plant. Bulk tanker trucks fill cement silos by pressurized air. This air carries cement to the silo and during discharge through the silo vent outlet; this air also carries dust particles to outside. Silo top jet filters installed on cement silos prevent these kind of dust emissions and provide healthier environment. Additionally, these filter systems also keep valuable cement dust inside the silo.

Cement Silo Filter Applications

Bulk cement tanker truck discharging
Pneumatic conveying systems
Silo filling
Industrial plants
Concrete batching plants

Advantages of Cement Silo Jet Filter

Maintains dust free clean environment around the production plant.
Prevents any raw material loss by keeping it inside the silo.
Maintains emission values below government environmental regulation limits.

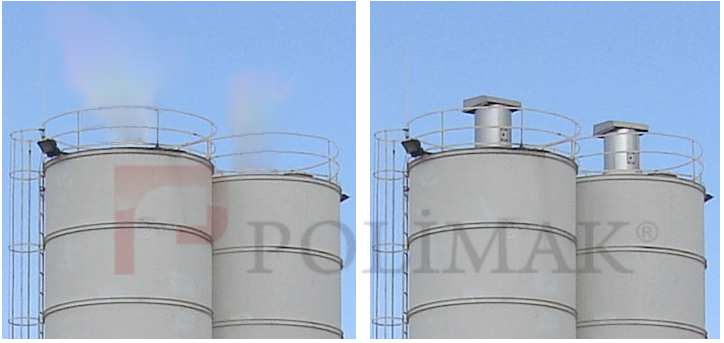

Dust emissions from silos before and after installation of jet filters

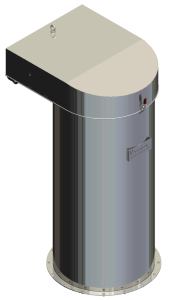

Technical Features of Cement Silo Jet Filters

Maintenance free jet pulse system.
Microprocessor controlled jet pulse timing.
High efficiency cartridge type filters.
Bag type filter elements are available on demand.
Easy access to filter elements.
Easy to install.
Filter surface area between 0.5m² - 100m².
Automatic filter cleaning with reverse pulse jet system.
Filter elements can be easily changed with top cover.
Outer body is designed to endure harsh weather and environment conditions.
Cylindrical body can be installed in any direction.
Lower connection flange and adapter for installing instead of different brands.
Low dust emission.
Works with 220V 50-60Hz power supply and 4-6 bar process air.
Wam Silo-top filters are available on request.

Jet Filter Accessories

Spare filter cartridges
Lower connection flange and adapters
Silo pressure safety valve

Other Jet Filter Applications

Cement Silo
Gypsum Silo
Calcium Carbonate Silo
Wheat Silo
Dust Collection Systems
Dust Silos
Bulk Material Filling and Discharging Systems
Dosing Weighing and Batching Systems
Loading Hoppers

Silo Systems, Cement Silo Equipment

Silo level sensor
Silo pressure sensor
Silo pressure safety regulator valve
Air pads and air jets for powder flow aid
Butterfly valve at silo outlet
Cement screw conveyor
Silo vibrating bin activator
