Bulk solids in the shape of powders and pellets are stored and moved around in many industrial applications. They are stored in bags, bulk bins, and godowns and have to be moved around by using trucks or other bulk carriers. Loading and discharging these solids is a major logistic issue and has to be managed. Our systems give you a strong capability to move around such materials efficiently, safely, and economically due to their excellent design and robust construction. Check out these systems and select the one best suited to your application.
3 Different Systems are available;
Look at our Mobile Bulk Truck loading processes. Our unique technology guaranties quick emptying of bags and robust, automatic and dust-free loading in the truck.
That is why our Mobile Truck loading systems are being used all over the world with very high client satisfaction.
They are not only efficient, easy to maintain and above all economical. If your applications require Big bag discharging and loading look at our models and we are sure that you will find one that exactly suits your needs.
Our System consists of a mobile platform, big bag discharger, loading screw, telescopic loading chute and dust collector. System can be towed by a forklift and screw conveyor can be brought to horizontal position for easier and safe transport.
There are many options to choose from. Select the model that meets your requirements completely.

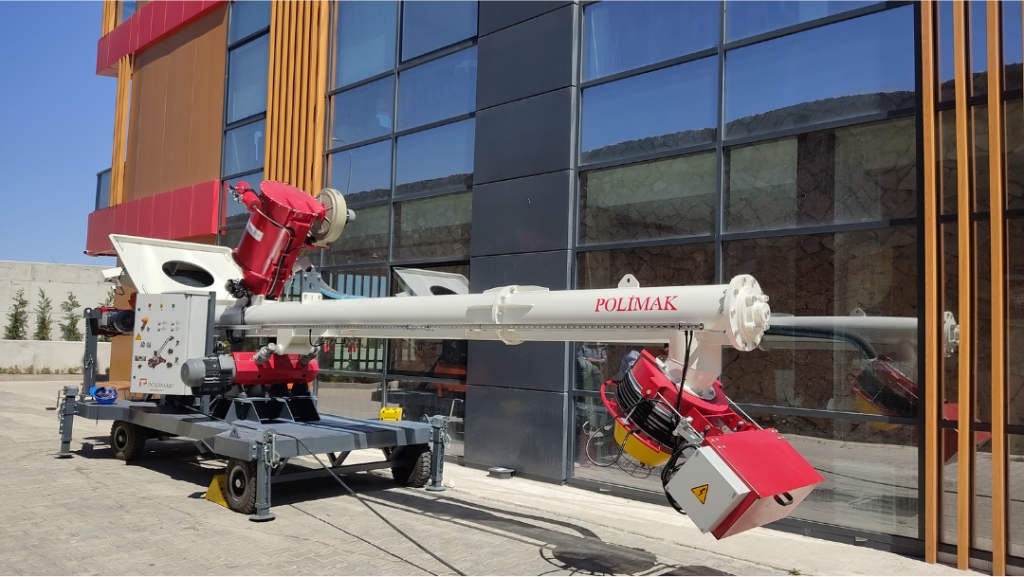

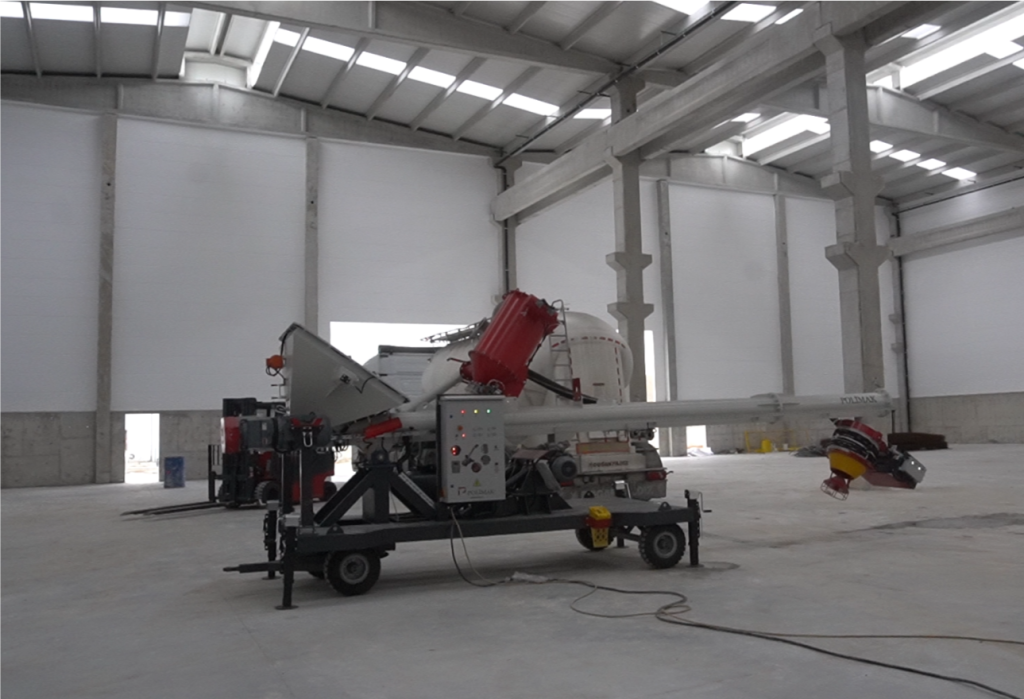

The system is shown with the screw conveyor in a horizontal position, optimized for mobility. Towable by forklift or manpower, its compact design allows it to fit easily into sea freight containers for efficient transportation.

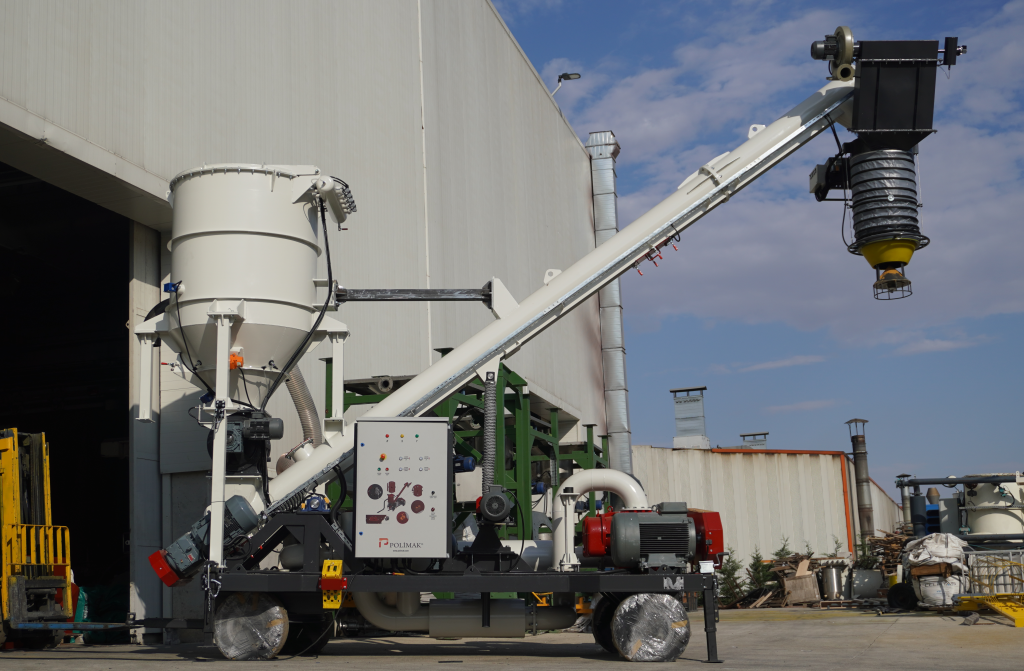

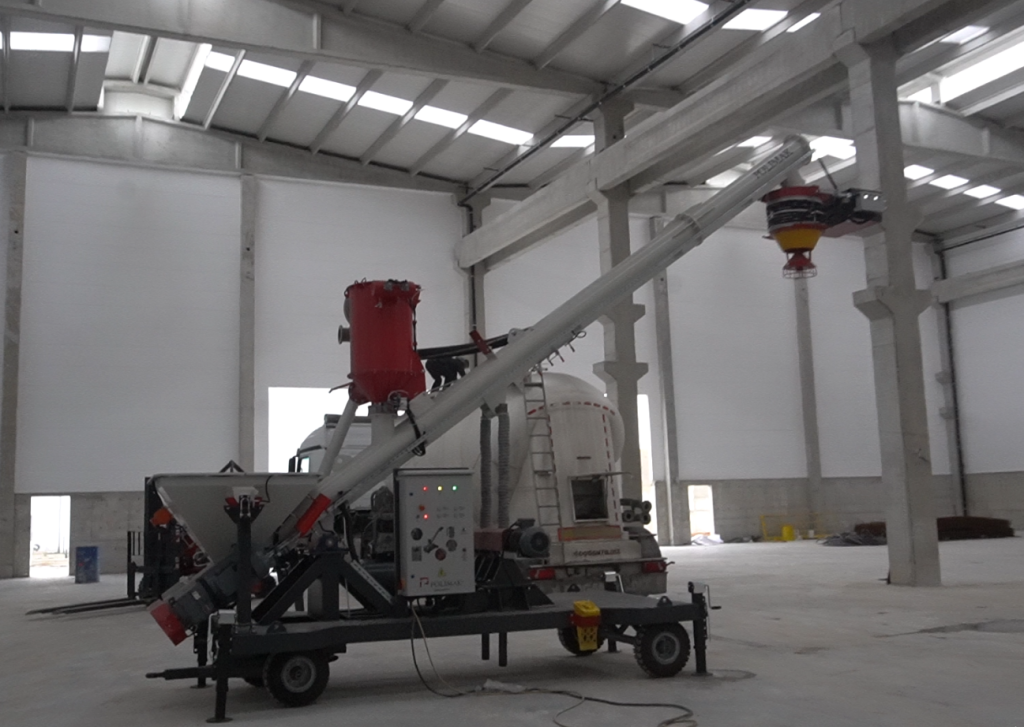

The system is depicted with the screw conveyor inclined, prepared for operation. Four screw jacks on the main chassis are extended to stabilize and rigidify the platform during loading, ensuring safe and reliable performance.

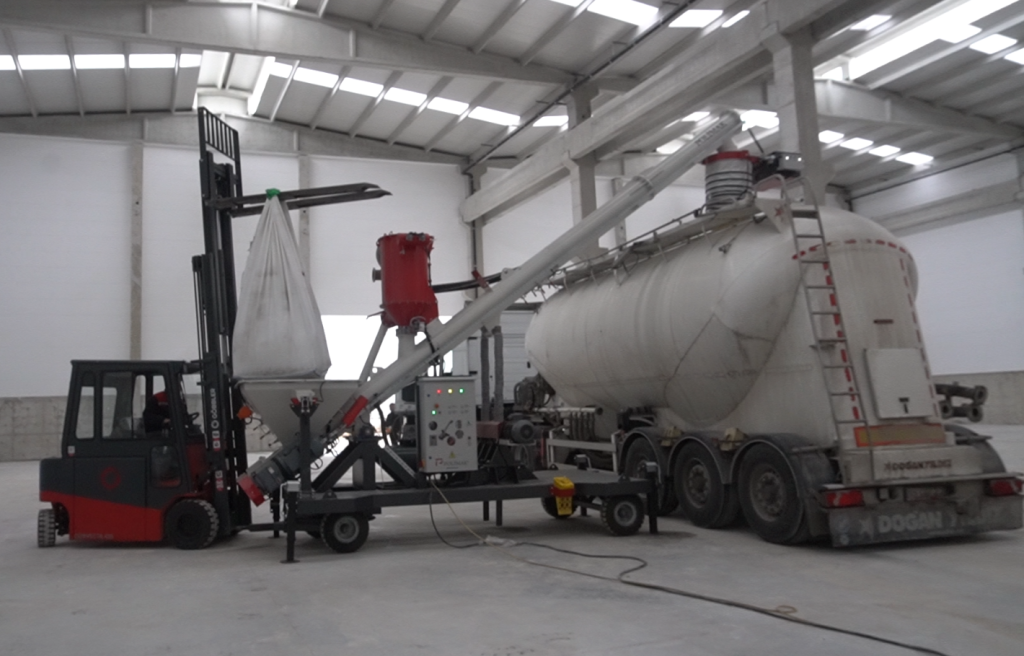

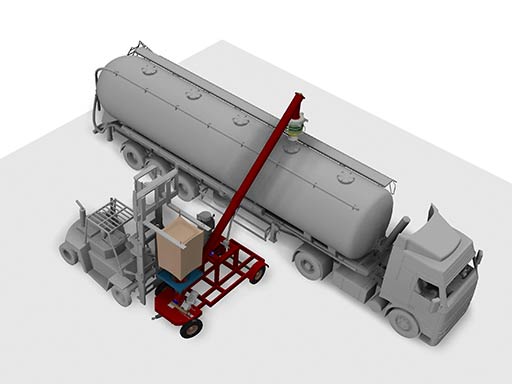

The system operates with the telescopic chute extended, securely seated on the tanker inlet. Big bags are unloaded using a forklift, with material flowing dust-free into the truck via the screw conveyor and chute.

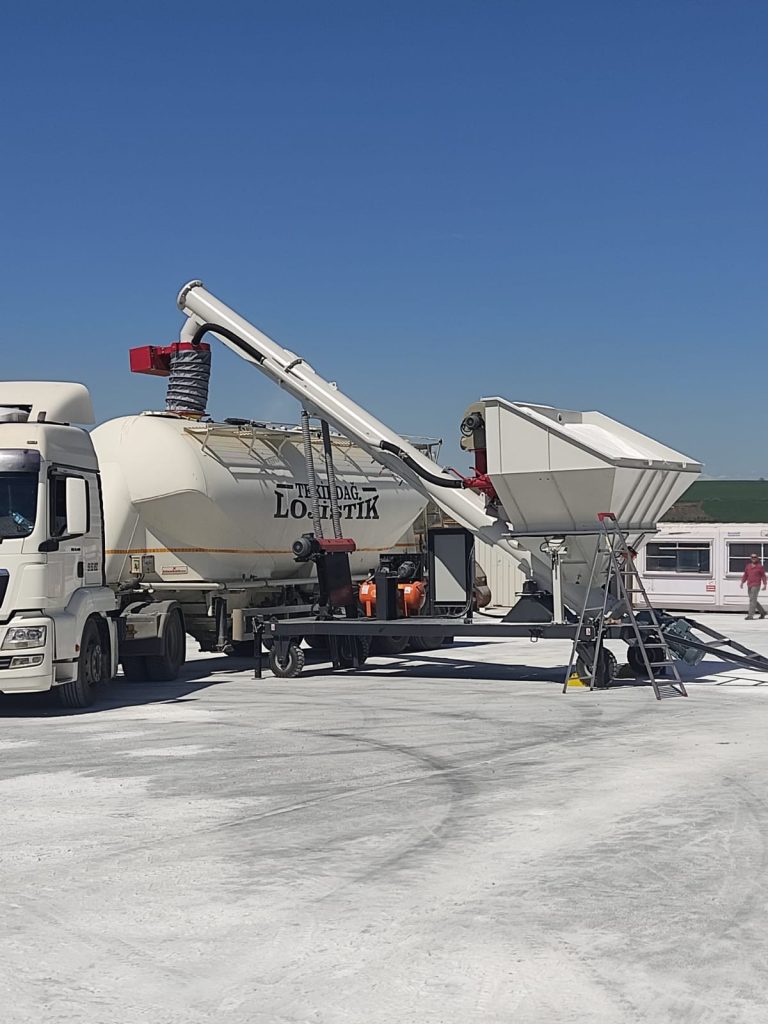

Tailored for rugged mining environments, the system is presented in its operational configuration, ready to discharge big bags and load bulk trucks efficiently. The integrated dust collector minimizes emissions, ensuring safety and regulatory compliance.
Tailored for mining applications, the system is displayed in its compact transport configuration. The horizontal screw conveyor and towable design enable easy relocation across mining sites or shipping via containers.

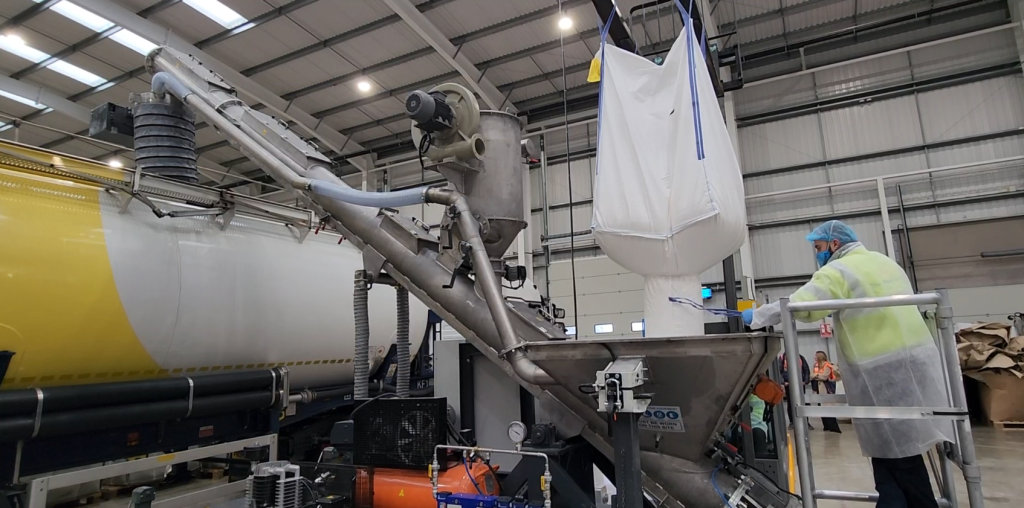

Featuring product-contact parts made of stainless steel, this system is ideal for food-grade materials. The image, captured at a sugar handling facility, highlights its hygienic design and dust-controlled operation.

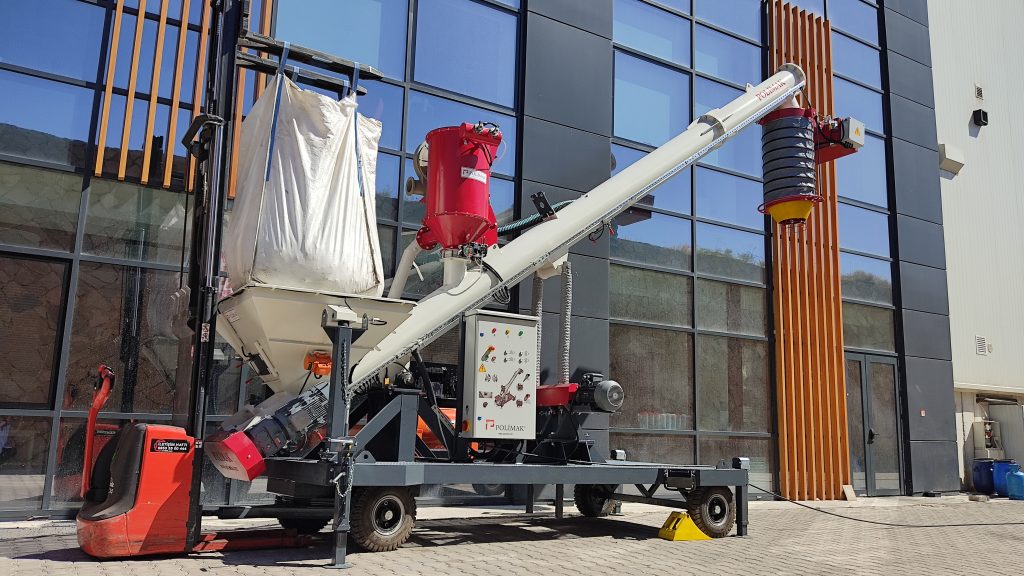

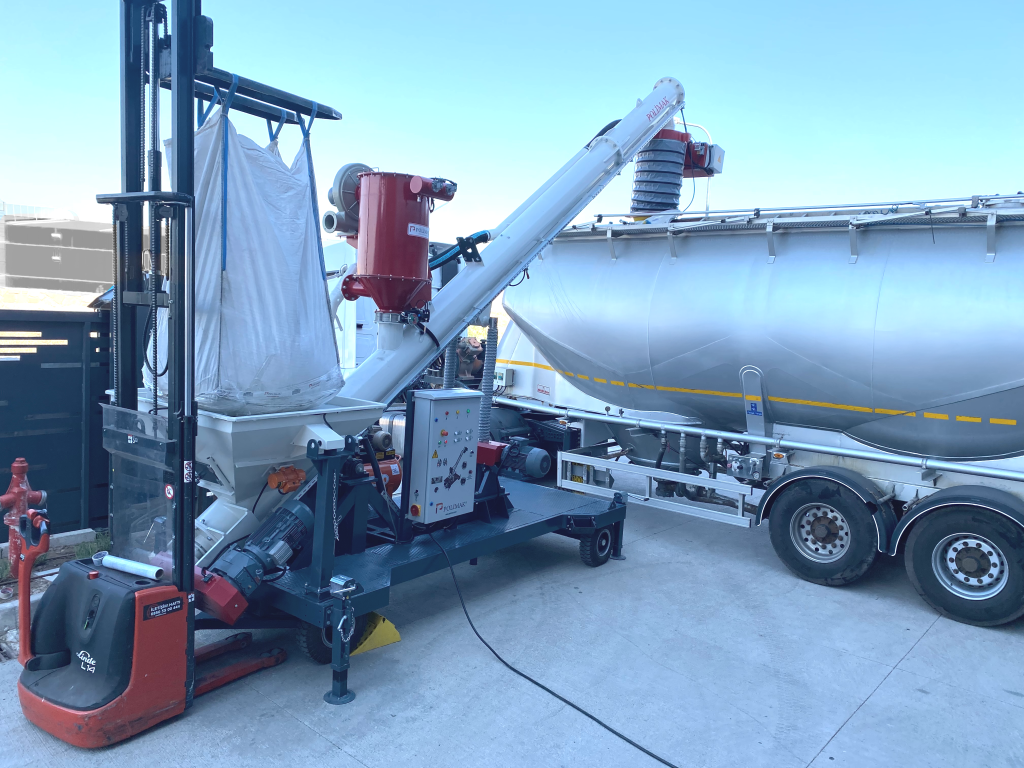

During truck filling, the integrated dust collector captures emissions from the big bag unloading hopper. This ensures a clean, safe environment throughout the material transfer process.

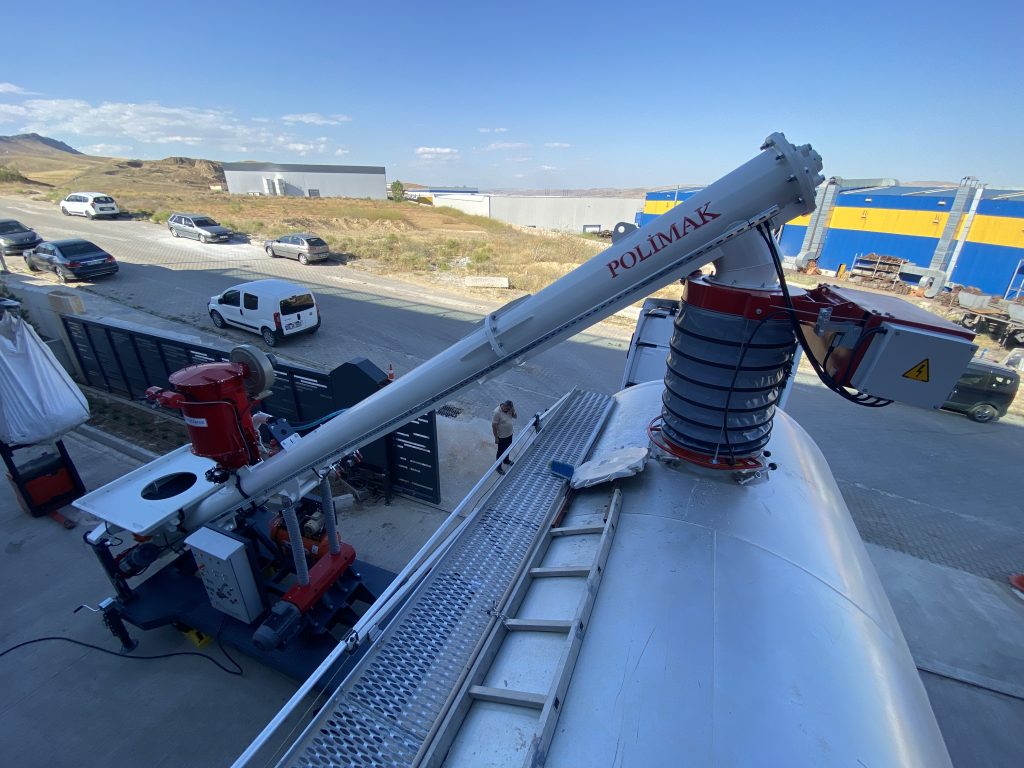

The telescopic chute firmly seats on the tanker inlet, preventing dust escape. Connected to the dust collector, it ensures dust-free loading and retracts automatically, guided by a level sensor, once the tanker is full.

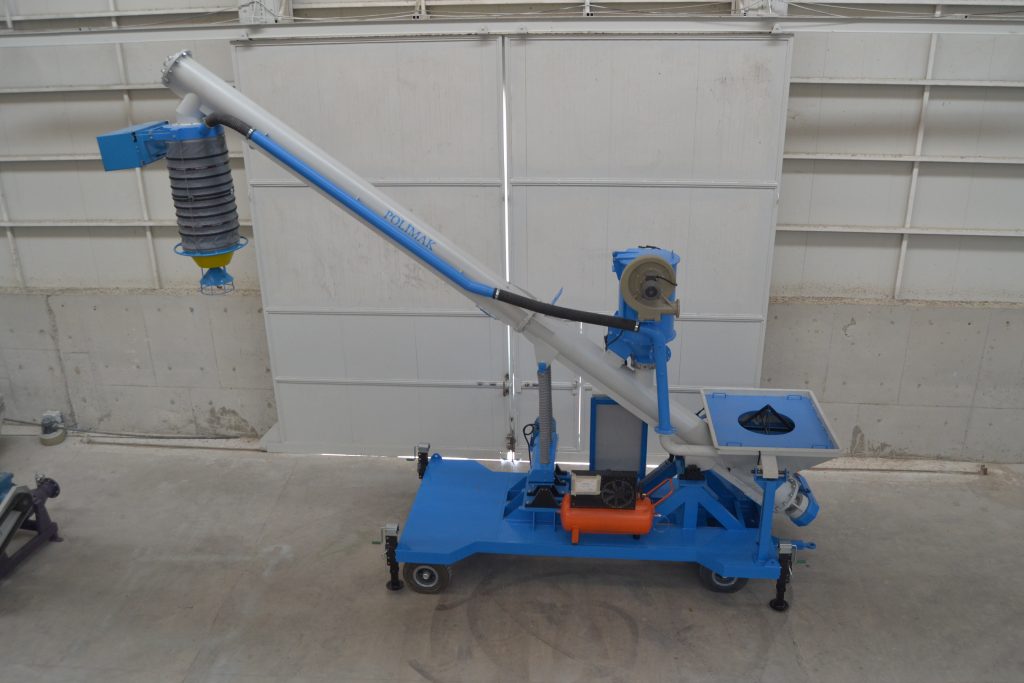

This image showcases a system painted in a custom color, available upon request. The design retains full functionality while offering aesthetic flexibility to meet client preferences.

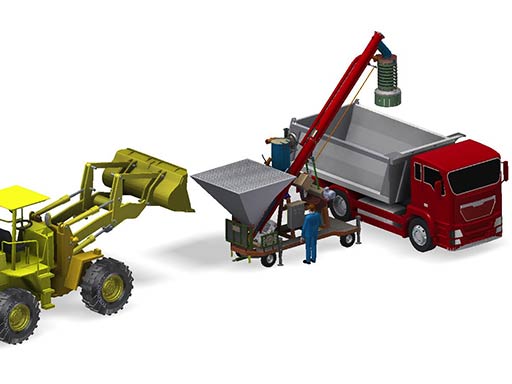

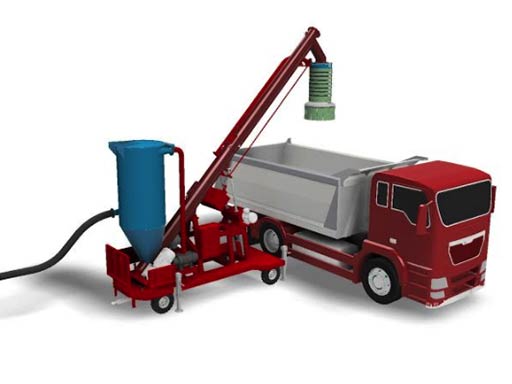

This innovative system features a suction hose for collecting material from stockpiles or processing lines, paired with a screw conveyor for truck loading. It offers versatile, dust-free material handling.
Tailored for mining applications, the system is displayed in its compact transport configuration. The horizontal screw conveyor and towable design enable easy relocation across mining sites or shipping via containers.

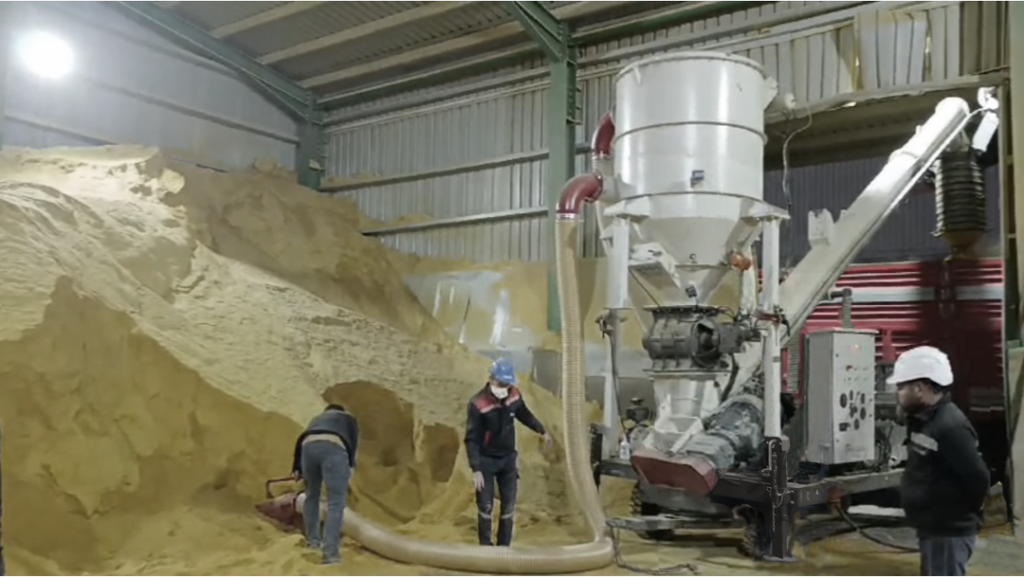

An operator uses the suction hose to gather material from a stockpile, loading it into a truck via the screw conveyor. The high-capacity system ensures rapid, dust-free transfer with minimal environmental impact.
Materials in powder and granule form like cement, fly ash, mining minerals, calcium carbonate, pvc, plastic pellets, plastic powders, polyethylene, ceramic powders, alumina, bentonite, bauxite, coal, cement clinker, gypsum, perlite, kaolin, limestone, marble powder, soda ash, quartz, urea, sodium sulphate, wheat, flour, animal feed, seed, corn, rice, sugar, salt and similar powdered or granular dry bulk solids.
