Silo Control System

QUALITY

Operation of Silo Control System

The electricity of air compressor of bulk solid tanker truck is supplied by silo control system.
Silo top air vent jet filter, silo pressure sensor, silo level sensors, pinch valve and other devices are connected to silo control system.
Pinch valve is attached to the inlet of silo loading pipeline. It controls the flow of material to the silo.
When the system is started, it checks the bulk solid level in the silo. If the silo is full, it does not give electricity to the bulk solid tanker truck.
If the silo level is low, first the silo vent jet filter is operated. After that pinch valve is opened. At last electricity is supplied to tanker truck compressor.
Silo level, and silo pressure is continuously measured during silo filling.
If the pressure inside the silo is increased too much, the electricity supply of the tanker truck is cut. At the same time silo pressure relief valve is opened to decrease the silo pressure and alarm signal is given to the operator.
If the tanker truck compressor receives the power supply from another source and silo loading cannot be stopped, then the pinch valve is closed automatically to stop material flow.
After the silo is filled, the silo jet filter continues to operate for some time and stopped.
The silo control system also controls and checks the pressurized process air required for silo vent filter and pinch valve.
If required amount of pressurized air cannot be supplied, the system warns the user by alarm. This makes trouble-free silo filling operation.
The silo control system can also control the silo discharge process. Bulk solid in the silo can be discharged into another truck by loading bellow. It can be transferred to another silo or process equipment by screw feeders, pneumatic conveying systems or mechanical conveyors.

Advantages of Silo Filling and Discharge Control System

It provides dust free and clean air in the region.
It maintains silo safety.
Safety of industrial plant is maintained.
The bulk solid level in the silo is controlled.
Silo overfilling is prevented by using silo level sensors.
The operating life of silo equipment is increased.
Silo filling time is decreased.

Components of Silo Control System

Silo Control System Operator Panel

System is controlled by an operator panel. The silo level switches, jet filters, pinch valves, tanker truck power supply, silo pressure sensor, compressed air supply, alarm conditions are checked and operated continuously. All operation parameters can be adjusted by the user. Silo operations are handled by a PLC controller.

Silo Level Switch / Sensor

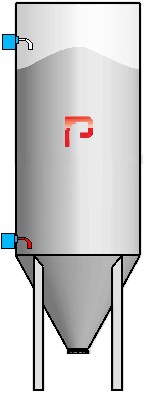

Silo level switches (sometimes called as silo level sensor) are used to monitor the bulk material level in the silo. A rotating paddle on the sensor is submerged into the silo. When the product fills the surroundings of the paddle, it can not rotate anymore. And a signal is generated to indicate that the level is over the position of level sensor.

Silo Pressure Relief Valve

Silo pressure relief valve is used to prevent any high pressure generation within the silo. During filling of the silo with pneumatic conveying, there may be risk of pressure increase within the silo. Pressure relief valve vents the silo if the pressure level rises above the determined level and maintains low pressure. Silo pressure relief valves are one of the important safety devices used in bulk solid storage silos.

Silo Pressure Sensor

Silo pressure sensors are used to measure the air pressure level within the silo. It sends signals to silo control systems or automation systems to indicate the pressure level.

Process Air Pressure Sensor

Compressed air pressure is checked continuously to maintain air to silo vent filter and pinch valve to ensure silo safety. If there is not enough air, pressure system alarms the user and cuts power supply of bulk truck.

Alarm Devices

Silo control system sounds and light alarms in case of any problem.

Bulk Tanker Truck Electricity Plug

Electricity plug used to supply power top tanker truck air compressor. It is energized by silo control system.

Pinch Valve

Pinch valves are used to control the flow of bulk solids in pneumatic conveying lines. Actuation of the valve, the pinching action is accomplished by air pressure placed on the sleeve. The flexible sleeve tightly closes the line. When the valve is open, there is no internal parts or geometries that can block or slow down the flow.

Silo Control System Applications

Concrete batching plants
Gypsum production plants
Industrial plants
Mining plants
Calcium carbonate, PVC, polypropylene, polyethylene filling processes
Sand, soda, cement filling applications
Bulk solid filling and discharging applications for wide range of industrial processes
